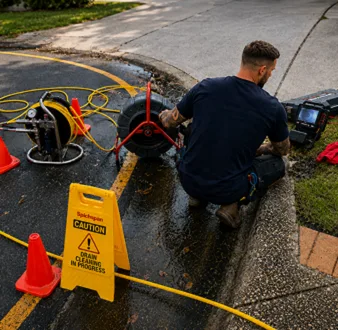

CCTV survey: $300–$750
Stands alone and is credited against the works by most operators. Without it nobody can price a liner honestly.
Trenchless Pipe Relining
No-Dig Drain
Repairs In
Glenmore Park
We camera the line first, show you what is actually wrong, and then tell you whether relining is the right answer. Often it is. Where the pipe has collapsed or lost its fall, it is not, and we will say so rather than sell you a liner that disappoints.
- Licence 368473C, fully insured
- Before and after footage, yours to keep
- We say so when digging is the better answer
When A Liner Is The Right Repair In Glenmore Park
A resin-saturated liner is drawn into the existing pipe through an access point, inflated so it presses against the wall, and cured until it hardens. What you are left with is a continuous pipe inside the old one, with no joints along its length and a slightly smaller bore than the original.
Nothing is excavated, and the cured surface is smoother than the clay or concrete it lines, so flow is typically maintained or improved despite the small loss of diameter. On a property where a driveway, mature garden or paving sits over the line, that is the whole argument.
Cracks that follow the seasons
A crack that opens in summer and closes in winter produces a fault that comes and goes, which is maddening to diagnose and very easy to dismiss as bad luck.
Glenmore Park is a master-planned suburb in Penrith’s southern foothills (postcode 2745), its 1990s-to-recent estates wrapped around the Loch and Ched Towns Reserve, with Regentville, South Penrith, Mulgoa and Orchard Hills at its edges. Modern pipes on reactive clay bring their own brand of drain trouble.
A liner is continuous through the affected length, so seasonal movement no longer has a joint to work on. On reactive ground that is the difference between a repair that lasts and one that reappears the next dry summer.
Fall, bellies and what a liner cannot fix
This is the honest limit of the method. A liner follows the pipe it is cured inside. If the run has sagged into a belly or lost its fall, relining seals it and leaves the shape exactly as it was, so the water still pools where it pooled before.
The suburb’s foothill clay swells and shrinks season to season, shifting pipe joints under slabs and driveways until they separate and snag waste.
On sloping ground that failure mode is common enough to check for specifically. Where the profile is wrong, the correct answer is excavation and re-lay of that section, and we will tell you so even though it is the more expensive quote.
Joints, not pipe: what is actually failing
On a clay line the barrel is usually fine. What has gone is the mortar or rubber ring at each joint, and there is one every few hundred millimetres, which is a great many small openings after sixty or eighty years in the ground.
That matters for the quote. You are not replacing a pipe, you are sealing a long series of joints, and a liner does the whole run at once rather than patching them one at a time.
Groundwater going the wrong way
An open joint leaks in both directions. On a low-lying block that means stormwater and groundwater entering the sewer through cracks, which is called infiltration, and it quietly overloads a line that would otherwise cope.
Runoff rolling downhill toward the Loch and Surveyors Creek carries sediment into estate stormwater systems, which silt up and overflow in heavy Western Sydney storms.
It shows up as a system that backs up in wet weather and behaves perfectly in dry. If that is the pattern, sealing the run is the fix, and no amount of clearing will reproduce the result.
Why patching one joint rarely holds here
On stable ground a short patch over a single defect is often the proportionate repair. On reactive soil it frequently is not, because the movement that opened one joint has been working on every other joint in the same run for the same number of years.
That is worth knowing when you compare quotes. The cheaper patch can be the right call, but on this ground the full-length liner is more often the one that ends the problem rather than relocating it a metre.
What it costs, and against what
Relining is priced per metre and the honest comparison is never liner against nothing. It is liner against excavation plus everything above the pipe: the driveway, the paving, the garden, the trading days lost, the reinstatement.
On an open lawn with a shallow line, digging can genuinely be cheaper and we will say so. Under a driveway, a mature garden or a building, it rarely is.
What relining actually is
A resin-saturated liner is drawn into the existing pipe through an access point, inflated so it presses against the wall, and cured until it hardens. What you end up with is a continuous pipe inside the old one, with no joints along its length and a slightly smaller bore than the original.
Nothing is dug up, and the new surface is smoother than the clay or concrete it lines, so it carries flow well despite the small loss of diameter.
What it costs in Glenmore Park
Relining, $500–$900 per metre
The usual Sydney range for domestic sewer. Access and junction reinstatement are normally quoted separately.
Patch repair, $1,500–$4,000
One defect in an otherwise sound run. The proportionate answer on stable ground, and the wrong answer on a line with twenty tired joints.
Full domestic run, $6,000–$15,000
Where the camera shows the same failure repeating along the length. Ends the problem rather than relocating it.
Excavation, from $2,500 plus reinstatement
The honest comparison. Cheaper on an open lawn, rarely cheaper under a driveway, paving or a building.
Indicative Sydney ranges for 2026. Your job is quoted in writing after the camera survey. Figures here are indicative of the 2026 Sydney market rather than a quote from us, you get your own number as a fixed price before any work starts.
From Survey To Finished Liner
Step 01
Step 01
Survey And Measure
We find the fault, measure it from an access point, and check the fall is intact. That last check is what stops a liner being installed into a belly.
Step 02
Quote In Writing
Per metre, with access and junction reinstatement itemised, and the excavation comparison alongside it so you can see both.
Step 03
Reline It
Clean, install, cure. One access point, one day for most homes, and no trench across the property.
Step 04
Hand It Over Documented
Branches reopened, final footage, certificate and notification. Keep it with the property file, it is worth real money at sale.
Want The Camera Run First?
Send it through and we will come back with what it is likely to be, what the survey costs, and whether relining is even the right conversation.
What People Ask About Relining
Straight answers on price, durability and when to dig instead.
Relining is priced per metre and the range across Sydney in 2026 is roughly $500 to $900 a metre for a domestic sewer, with junction reinstatement and access usually quoted separately. A short patch repair over a single defect commonly lands between $1,500 and $4,000, and a full-length domestic run more often sits between $6,000 and $15,000. The honest comparison is not liner against nothing: it is liner against excavation plus reinstating whatever sits on top of the pipe.
Usually, but not always, and anyone who says always is selling. Relining wins wherever something valuable sits above the pipe: a driveway, established garden, paving, a building, or trading days you cannot afford to lose. Excavation wins on an open lawn with a shallow line, and it is the only answer where the pipe has collapsed, lost its fall or been crushed out of round. A camera survey is what tells you which case you are in.
Yes, and no honest quote exists without one. The survey establishes the pipe material and diameter, where the defects sit and how far they are from an access point, whether the fall is intact, and where the junctions are. Ask for the footage afterwards. It is your property, it is the evidence behind the price, and it is what an insurer, a strata manager or a buyer will want to see later.
Reactive clay swells in the wet and shrinks in a dry spell, so rigid drainage laid through it is flexed every year. The joints absorb that movement until they stop absorbing it. It is why faults on these soils cluster after a long dry followed by heavy rain: the pipe did not fail that week, it finished failing that week.
Usually much better, because excavating on a slope is a different job from excavating on the flat. Machine access is often impossible, spoil has to go somewhere, trench walls need support, and reinstating a tiered garden or retaining structure can cost more than the drainage work itself. A liner is installed from an existing access and leaves the surface untouched.
Sometimes, and the camera decides it. If the line is cracked or the joints are open, sealing the run fixes it. If the problem is a flattened fall, a belly or an undersized line, relining will not correct the shape and excavation is the honest answer. Book the inspection between storms, not during one: a surcharging pit at the height of it costs more to look at and tells you less.
Almost never. Removing a mature tree is expensive, often needs approval, and does not remove the roots already inside the line. {COUNCIL}Sealing the way in is what changes the outcome, and it lets you keep a tree that is usually worth more to the property than the drainage repair costs.
Get A Pipe Relining Quote In Glenmore Park
Call for the fastest answer, or send the form and we will arrange a camera survey before anything is quoted.
